Overview of the Technology

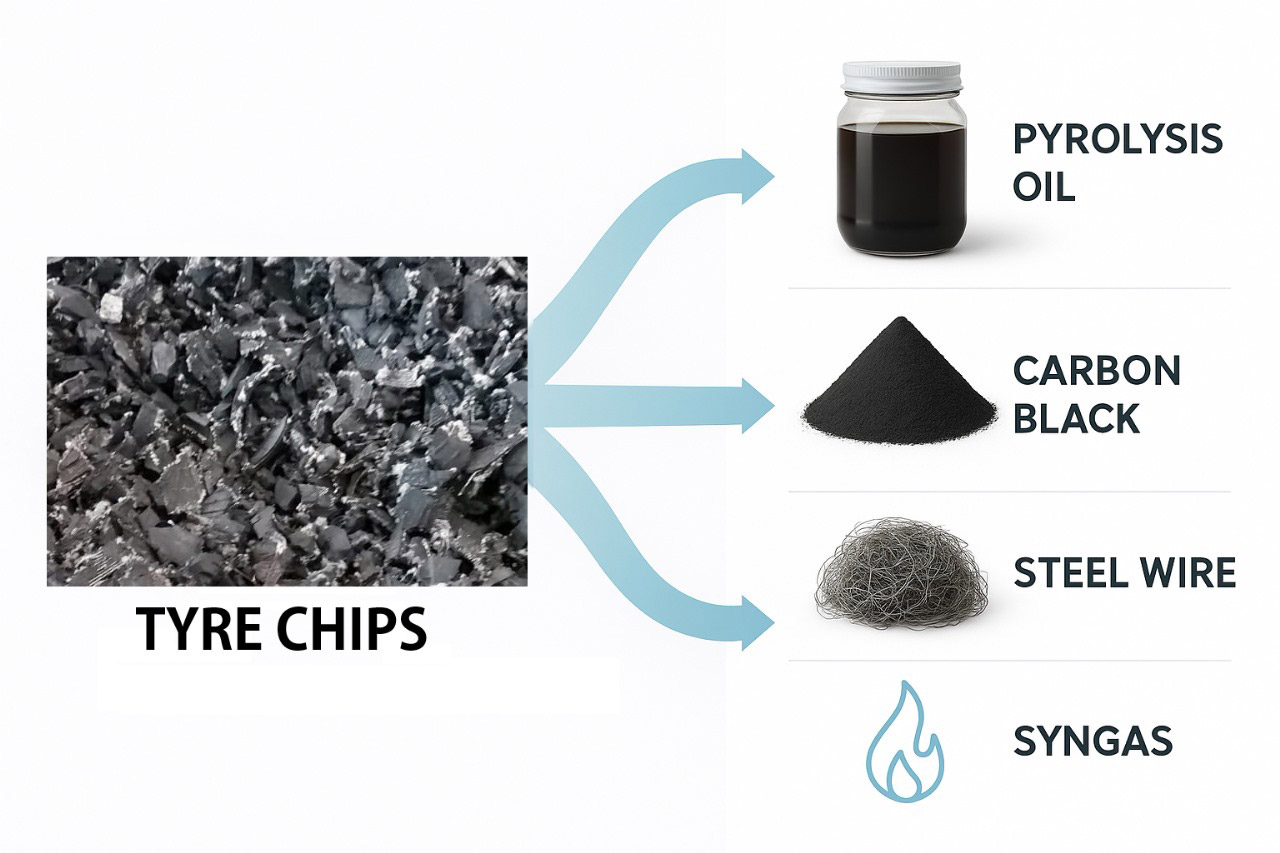

Continuous pyrolysis is a modern waste-to-energy process that thermally decomposes tyre rubber into valuable resources such as Tyre Pyrolysis Oil, Carbon Black, and Steel, without oxygen.
Unlike batch pyrolysis, continuous systems like the GS-24 model operate 24/7, feeding raw material and discharging products simultaneously.
Why Continuous is Better than Batch
Higher Throughput
Processes up to 1,000 kg/hr (24 TPD).
Stable Heat Profile
Consistent temperatures improve oil quality and yield.
Lower Fuel Costs
Reuses pyrolysis gas for heating.
Lower Electricity Costs
Compared to batch process, saving electricity costs.
Automation
Minimal manual intervention.
Safer Operation
No frequent openings of hot reactors.
Key Features
Internal Rotating Reactor
Special fins ensure uniform heat transfer.
Double Sealing System
Air-tight feed and discharge for safe operation.
PLC-Controlled Automation
One-click startup after preheating.
Technical Specifications – GS-24 Model
Reactor size
900 mm (D) X 8 Mtr (L) - 3 nos.
Reactor type
Stationary, Internal rotating.
Chimney
100 Ft with water scrubber.
Power consumption
75 KW
Space occupied
12 x 15 x 6 ( meters)
Total weight
90 Tons (approx)
